Low Cost Audio Amplifier Circuit

I WILL GIVE YOU 100 % WORKING AND LOW COST AUDIO AMPLIFIER WITH SIMPLE CIRCUITRY


1ST OF ALL I WILL TELL YOU ABOUT THE COMPONENTS REQUIRED FOR THIS AUDIO AMPLIFIER
LIST OF COMPONENTS
1-  T E A 2 0 2 5 I C

2- 0.22 uF CAPACITOR ( 2 PIECES) (THIS IS CERAMIC CAPACITOR)

3- 0.15 uF CAPACITOR (2 PIECES) (THIS WILL BE ALSO CERAMIC        CAPACITOR)

4- 100 uF CAPACITOR (6 PIECES)

5- 470 uf CAPACITOR (2 PIECES)

6- 10 KILO OHM VARIABLE RESISTOR (IT IS OPTIONAL YOU MAY OR MAY NOT USE THIS)

7- TWO 4 OHM SPEAKERS FOR LOAD

CIRCUIT DIAGRAM

COMPONENTS


IN CIRCUIT DIAGRAM YOU CAN SEE THE VCC SUPPLY FOR SUPPLY YOU CAN TAKE ANY DC SUPPLY OF 3V TO 12 V UNDER 1 AMPERE FOR BETTER PERFORMANCE TAKE MINIMUM 9 VOLT SUPPLY.

AND Vin 1 AND Vin2 IS YOUR INPUT SIGNAL WHICH WILL GIVE YOU FROM YOUR AUDIO PLAYER THROUGH AUDIO JACK OR IN OTHER WAY WHICH WOULD YOU LIKE.
IF YOU USE AUDIO JACK , IT HAS 3 TERMINAL IN CASE OF STEREO JACK IN THIS YOU HAVE 3 WIRES FROM JACK ONE FOR RIGHT CHANNEL AND SECOND WIRE FOR LEFT CHANNEL AND THIRD ONE FOR GROUND THAN MAKE GROUND MAKE COMMON FOR BOTH AND CONNECT ONE WIRE OF AUDIO JACK IN Vin1 AND ANOTHER WIRE IN Vin2.

AND HERE POT RESISTOR IS OPTIONAL, IF YOU WANT TO CONTROL VOLUME THROUGH CIRCUIT, THAN YOU CAN CONNECT POT RESISTOR IN Vin1 AND Vin2.

NOW YOU SHOULD KNOW WHY WE USED HERE TEA 2025 IC
THIS IC IS ORIGINALLY DESIGNED FOR PORTABLE CASSETTE PLAYERS AND RADIOS.
BUT IT CAN BE ALSO USED TO MAKE A PRETTY DECENT STEREO AUDIO AMPLIFIER FOR AN I POD OR MP3 PLAYER.

THE INTERESTING CHARACTERISTIC OF TEA 2025 IS, IT HAS BUILT IN THERMAL PROTECTION CIRCUIT.
THIS CIRCUIT IS 100 % WORKING AND BEST FOR HOME PURPOSE AUDIO AMPLIFIER
AND FURTHER I WILL TELL YOU HOW TO MAKE COMPLETE AUDIO SYSTEM WITH THIS CIRCUIT.

THANK YOU














Sunday, 12 November 2017

Transistor

What is transistor?


Simply you have to just remember 3 or 4 lines only
1st transistor is a semiconductor device, yes, it is a device not a component.
2nd transistor is capable of amplifying the electronic signals.
3rd transistor acts like a switch.
These three lines are capable of little introduction of transistor
Or simply we can say that it is the combination of two diodes.
Ok,
Now,
Come on its types & construction which is very important to understand.

According to construction there are basically two types of transistor.

NPN and PNP


It is very simple to understand.


In PNP transistor
It used 2 p type semiconductor and 1 n type semiconductor
Definition
Those transistors which have two p type and one n type semiconductors, the n type semiconductor is sandwiches between two layers of p type semiconductor is called pnp type transistor.

&

In NPN transistor
It used 2 n type semiconductor and 1 p type semiconductor
Definition
Those transistors which have two n type and one p type semiconductors, the p type semiconductor is sandwiches between two layers of n type semiconductor is called NPN type transistor.

In its construction we can see that it has 3 terminals named as emitter (E), base (B) & collector (C).

From emitter base junction we give input signal and from collector base junction we take output of amplified signal.

In circuit symbol one thing you always take care, the arrow mark on emitter line, this arrow mark always inward the base side in PNP, and outward from the base in NPN transistors. This arrow shows the direction of flow of current in transistor.
After that, we always have problem of polarity in input and output.
So you always remember that      P side positive supply
                    &            N side negative supply

In circuit symbol you can see that which side have positive and negative.

These transistors also known as BJT (Bipolar Junction Transistor)

According to name it is clear that it forms more than one junction.
I think you should clear that what is junction. Junction is a place or point of meeting.
So can see in the circuit symbol it has three junctions EB (emitter base junction), CB (collector base junction) & EC (emitter collector junction), it has three junctions but always between the two poles so it is called BIPOLAR JUNCTION TRANSISTOR.
I think it’s sufficient for basic concept.



Now,

Bipolar Transistor Configurations


As the Bipolar Transistor is a three terminal device, there are basically three possible ways to connect it within an electronic circuit with one terminal being common to both the input and output.

· Common Base Configuration – has Voltage Gain but no Current Gain.

· Common Emitter Configuration – has both Current and Voltage Gain.

· Common Collector Configuration – has Current Gain but no Voltage                                      Gain.

Hear, amplification = gain

1st

Common base configuration

As its name suggests, in the Common Base or grounded base configuration, the BASE connection is common to both the input signal AND the output signal. The input signal is applied between the transistors base and the emitter terminals, while the corresponding output signal is taken from between the base and the collector terminals .



This type of amplifier configuration is a non-inverting voltage amplifier circuit, in that the signal voltages Vin and Vout are “in-phase”. This type of transistor arrangement is not very common due to its unusually high voltage gain characteristics.



Also this type of bipolar transistor configuration has a high ratio of output to input resistance or more importantly “load” resistance ( RL ) to “input” resistance ( Rin ) giving it a value of “Resistance Gain”. Then the voltage gain ( Av ) for a common base configuration is therefore given as:

Common Base Voltage Gain




Where: Ic/Ie is the current gain, alpha ( α ) and RL/Rin is the resistance gain.

The common base circuit is generally only used in single stage amplifier circuits such as microphone pre-amplifier or radio frequency ( Rf ) amplifiers due to its very good high frequency response.



2nd

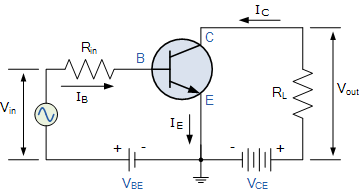

The Common Emitter (CE) Configuration
